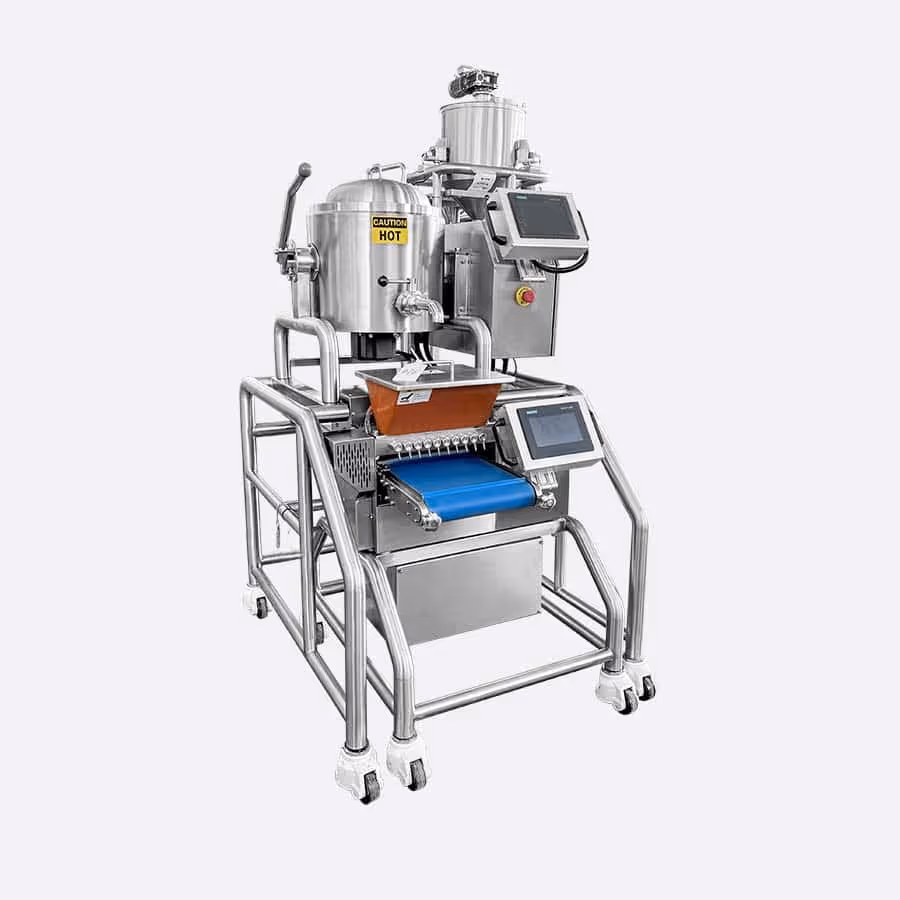

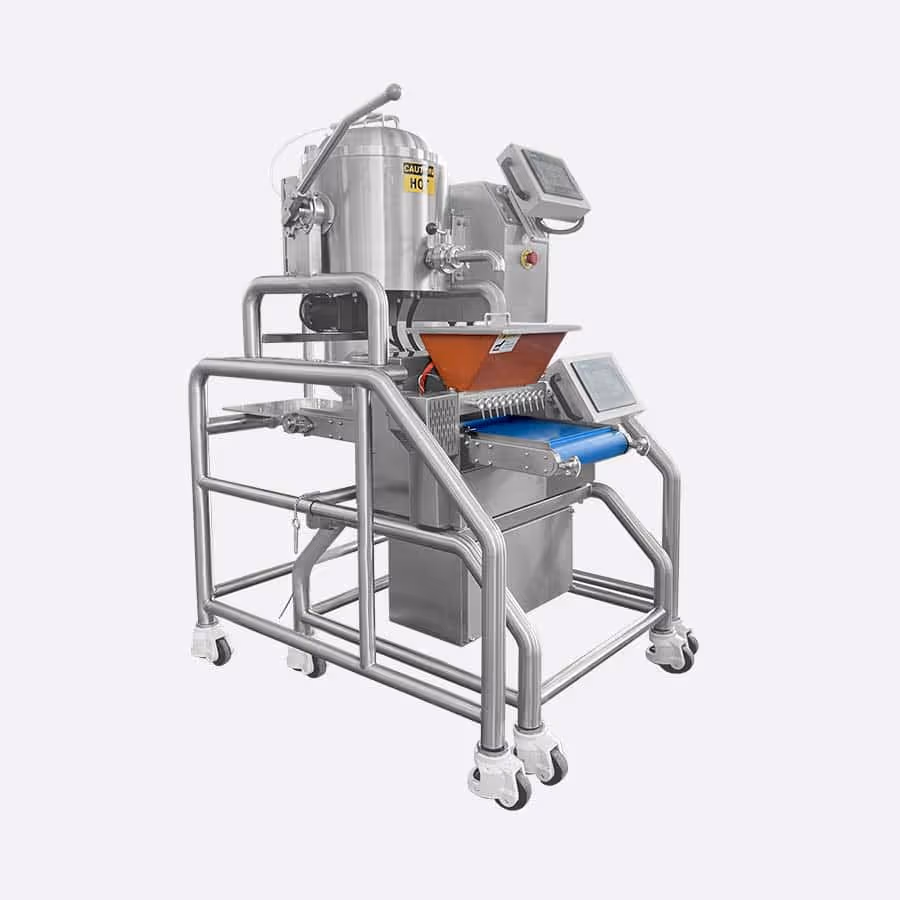

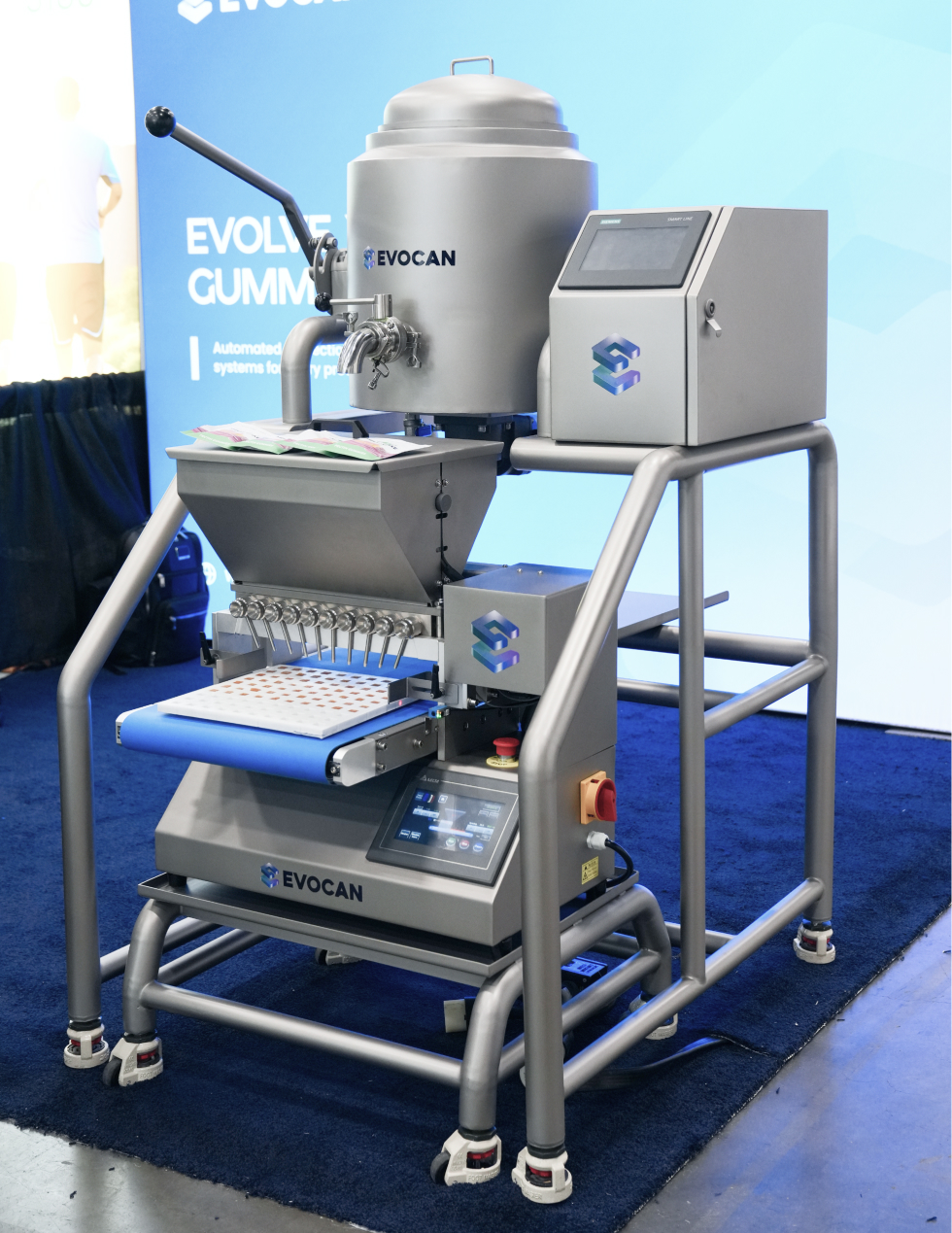

Mini Depositor with Cooker

The EVOCAN Mini Depositor with Cooker is an all-in-one solution designed for low-output production environments, ideal for businesses that want to automate without sacrificing flexibility. Capable of producing up to 18,000 pieces per hour, this compact system is ideally suited for crafting a wide range of confectionery products, including jellies, hard candies, lollipops, toffees, and more. Its integrated cooking and depositing functions streamline the production process, reducing the need for multiple machines and minimizing setup time. With a small footprint and user-friendly interface, the Mini Depositor with Cooker is a wise, space-efficient choice for facilities looking to scale production while maintaining quality and control.

Get Your Quote

Product Specifications

Production Capacity 18,000 deposits per hour
Electric Power Needed 220V / 1hp / 60Hz
Room Temperature (°C) For Cooling System 22~25
Humidity (%) For Cooling System 45
Machine Dimensions: 590 x 400 x 450mm (L x W x H)
Machine Weight (Kg) 60kg

Benefits

Main Features

  • Up to 18,000 deposits per hour

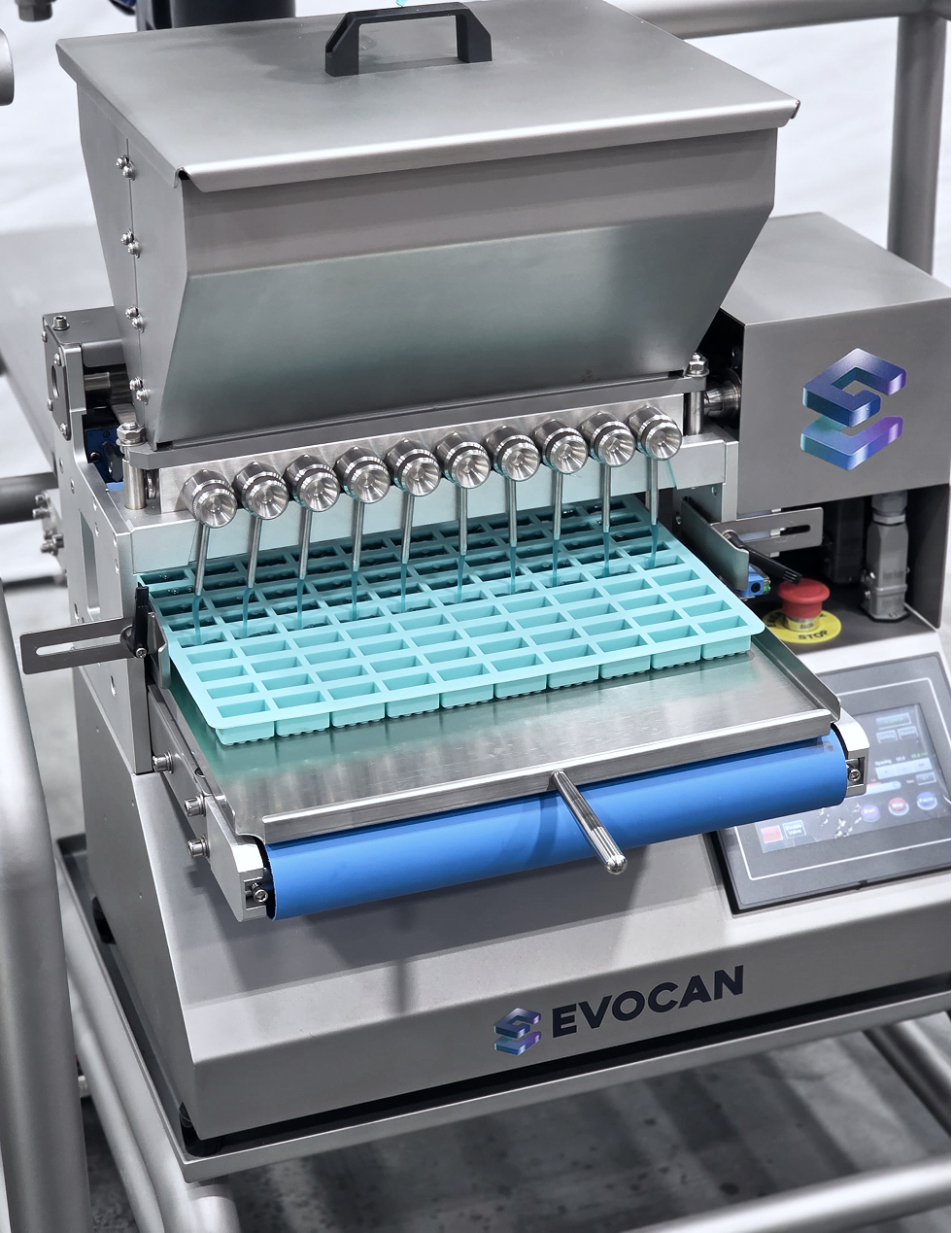

  • Servo drive cleated conveying for silicone sheet mold indexing

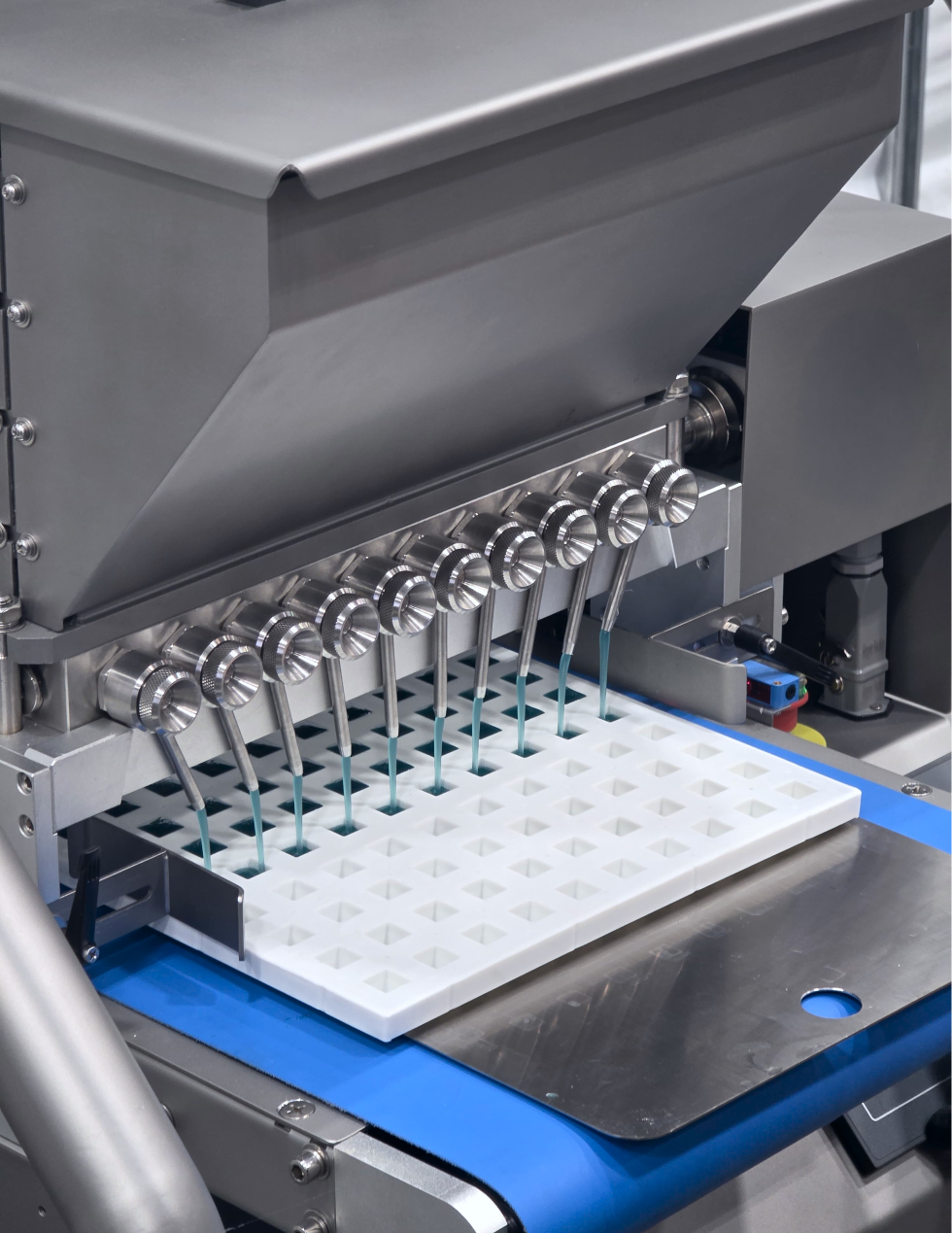

  • Ten depositing nozzles with FDA-approved parts
  • Precision servo drive pump for +/- 2% weight variation
  • HMI control system with 25 product setting memory banks
  • 7-liter hopper with variable heating controls (30~150°C)
  • Voltage: 220V/1ph
  • Portable with locking casters

Semi-Automatic Pneumatic Demolding Station

  • Place reinforced silicone mold onto platform
  • Press pneumatic discharge buttons (requires both hands for operator safety)
  • Gummies eject onto tray below

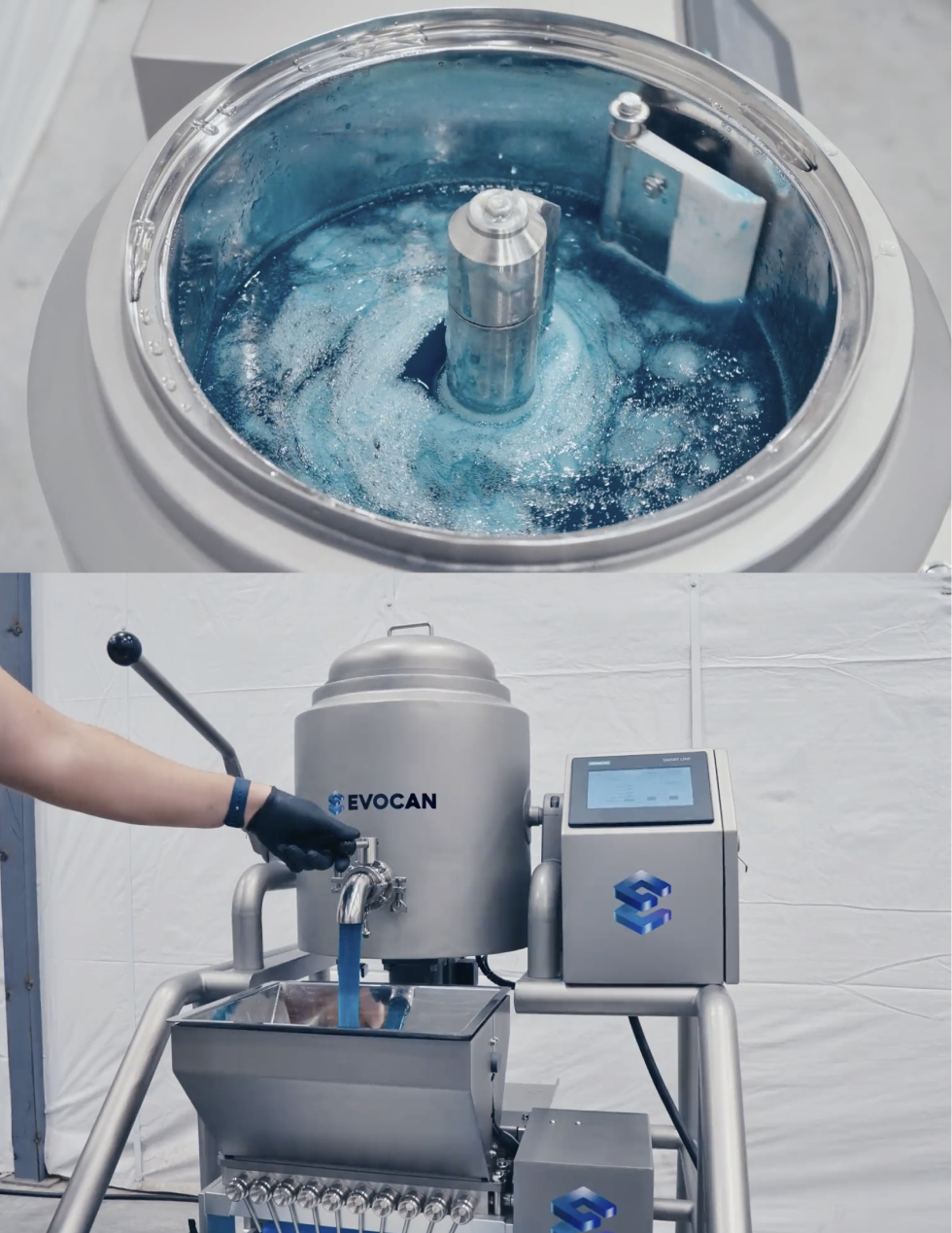

Tabletop 20 Liter Cooking Kettle

  • Bottom and side scraping
  • HMI control system with 20 product setting memory banks
  • Variable speed mixing and heating (up to 180°C)
  • Cooling system and safety interlocking lid
  • Portable with locking casters
  • Voltage: 220V/1ph/60Hz
